Denver, South Park and Pacific Railroad
DSP&P Plans by John Maxwell
This page contains reduced size reproductions of John Maxwell's
plans of South Park era equipment. There are 3 locomotives, 3
passenger cars, and 7 freight cars, plus 4 waycars from the C&S
era. For more C&S era drawinds,
CLICK HERE --
these cover DSP&P cars that survived into the 1900's.
All were drawn in
the 1950's and 1960's. John's notes and comments on the
plans give insights into road numbers (with dates) and
construction details that are the backbone of many subsequent
articles and books on the DSP&P.
I
purchased a set of 183 plans from an estate sale via eBay that
covered a wide range of his drawings. My copies appear to be very old blackline prints on very soft paper that will not stand much
handling. I have no idea how complete the set is. For a complete
index of this collection, CLICK
HERE.
John's son Bruce managed the Maxwell Collection for a
few years but he too has passed away. I don't know where the
original drawings are now. If you know who has the originals,
please contact me.
Below are my original scans,
converted to blueprint format. Right click and "Save Picture As"
to capture the image you see on the screen.
For more detailed full size scans in PDF
format, left click the image then usse File >> Save As, after
the PDF
file loads, to save the image on your hard drive.
Left Click these links to download other DSP&P drawings by John
Maxwell not shown elsewhere on this page.
•
DSP-108 Como Roundhouse
•
DSP-109 Pitkin Depot
•
DSP-110 Bailey Depot
DSP&P 2-6-6T Mason
Bogie #15 "Breckenridge"
DSP&P 2-6-0 Cooke Mogul
#71
DSP&P 2-8-0 Cooke
Consolidation #63 (Also BLW Versions)
DSP&P Pullman Sleepers
"Bonanza", "San Juan", "Leadville"
DSP&P Coach #9
DSP&P Baggage Express Cars
#40, 41, 45
DSP&P
Baggage-Mail #42 -- 44 later 1300 -- 1302
C&S Baggage Mail Express #110 -- 112 later 10 -- 12

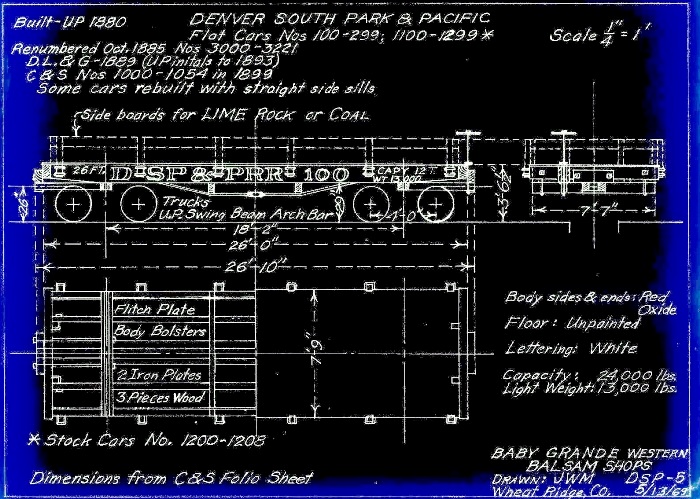

DSP&P 26 Foot Flat Cars 100 to 299 and DSP&P 1100 to 1299
(excluding 1201-1208)
DSP&P 26 Foot Coal Cars 300 to 499 and DSP&P 1300 - 1443

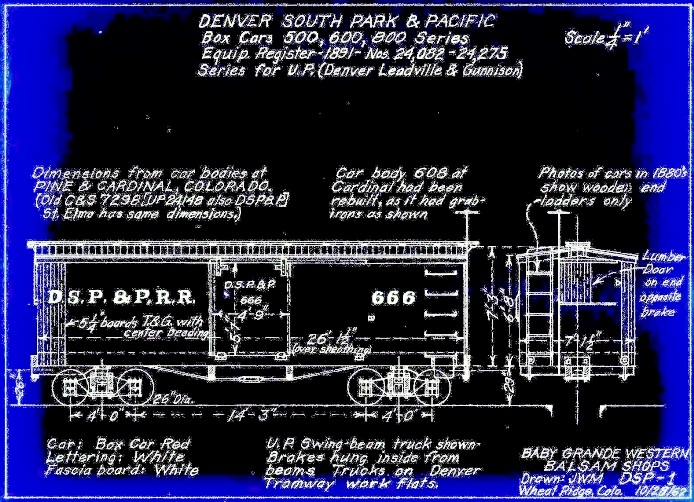

DSP&P 27 Foot Box Cars 500 to 899
dsp-maxwell/DSP-1 Box Cars 500 600 800 Series Nos
24082-24275.pdf
DSP&P 27 Foot Box Car 608 (before DSP&PHS Restoration)

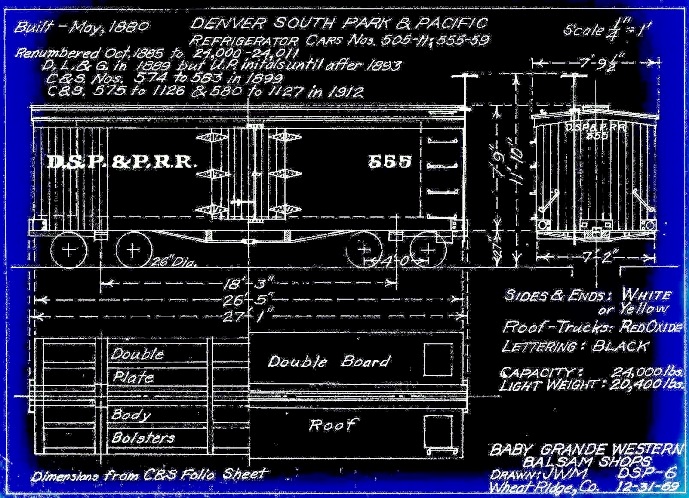

DSP&P 26 Foot Refrigerator Cars 505 to 511 and 555 to 559
DSP&P 27 Foot Refrigerator Cars 1050 to 1064
DSP&P 26 Foot Stock Cars 1200 to 1208
DSP&P Waycars 69, 76,
73, 75,
Based On Drawings of

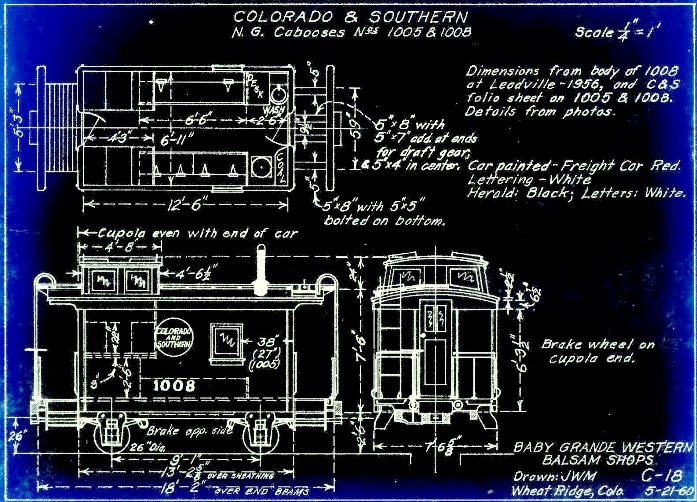

C&S Cabooses 1005 (307), 1008 (310), 1006 (308), 1007 (309)
Denver, South Park and Pacific Railroad
DSP&P / C&S Plans by John Maxwell
These plans are for cars that were on
the DSP&P that made it to the C&S era. All images
displayed below have been reduced in size. Remember to add end
platforms to the baggage cars. Caboose cupolas came late in DL&G
or early C&S eras. For a relatively complete index of John
Maxwell's plans,
CLICK HERE.
A note on the excursion car plan shows some dates from 1883,
possibly on the CC Georgetown Loop, but could also be DSP&P out
of Denver.
Below are my original scans,
converted to blueprint format. Right click and "Save Picture As"
to capture the image you see on the screen.
For more detailed full size scans in PDF
format, left click the image then usse File >> Save As after PDF
file loads to save the image on your hard drive.

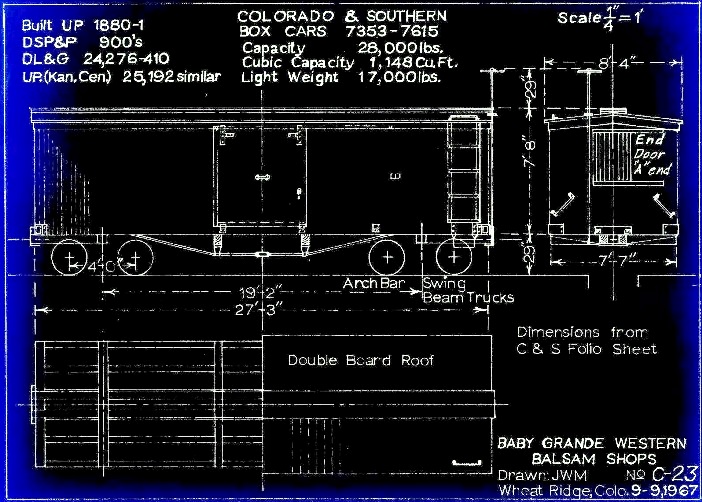

DSP&P 900 Series
Charcoal and Box Cars

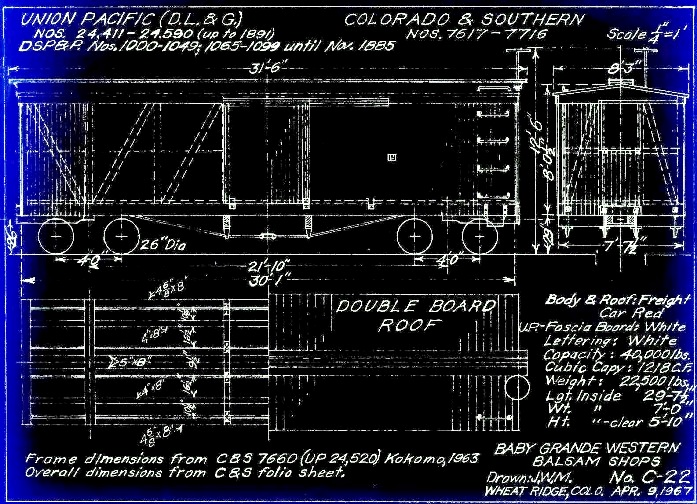

DSP&P 1000 Series
Charcoal and Box Cars
C&S Cabooses Rebuilt From DSP&P Waycars 69, 76
DSP&P Cabooses 69, 76,
73, 75,

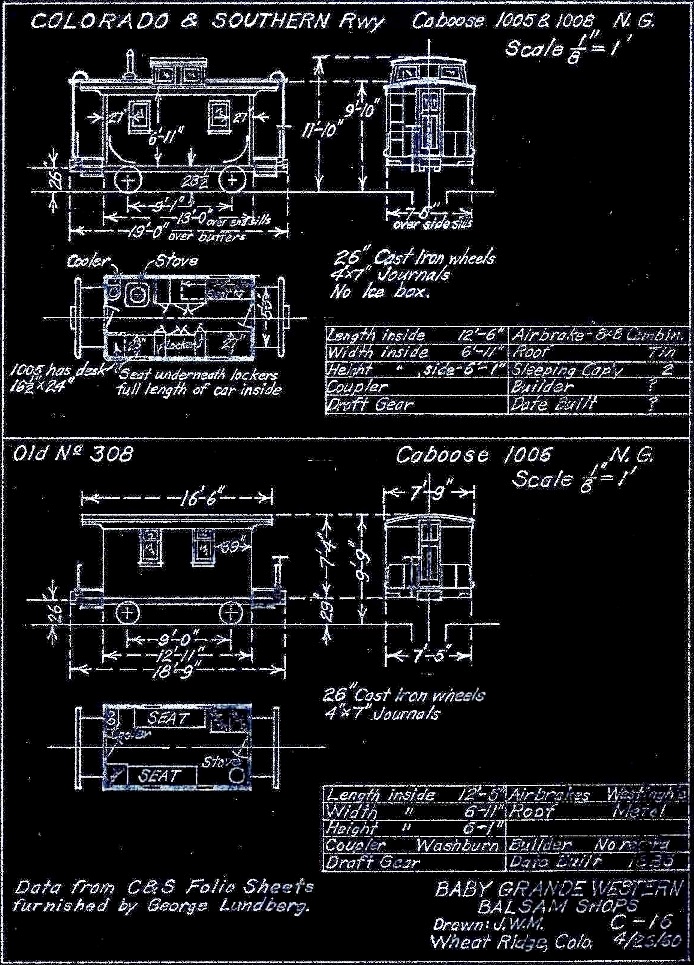

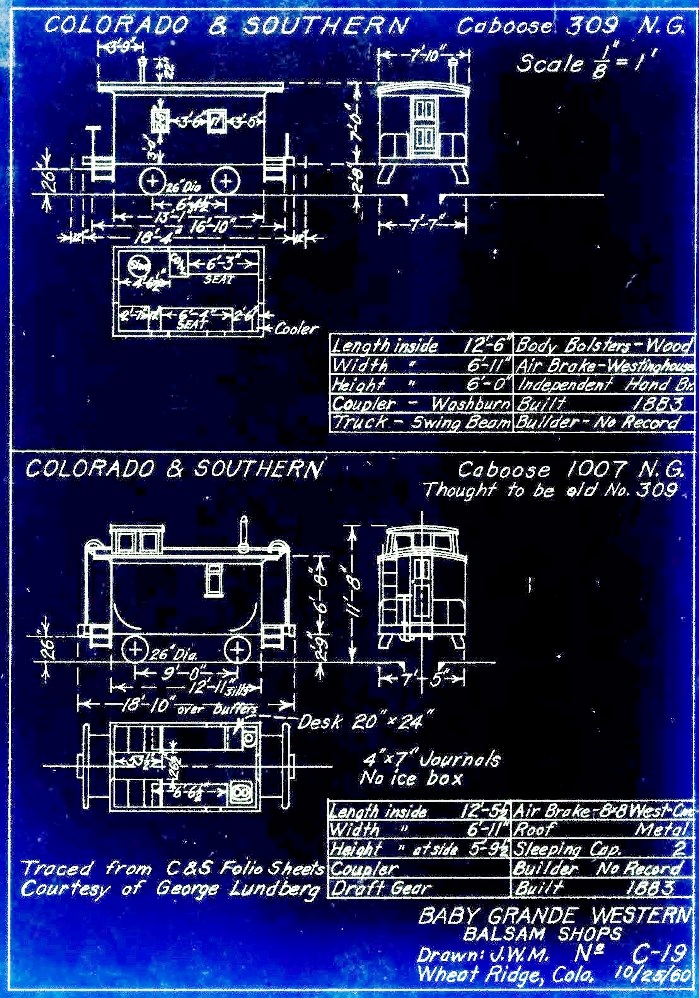

C&S Cabooses 1005 (307), 1008 (310), 1006 (308), 1007 (309)
DSP&P Flangers
05, 06 (1885) / DL&G Flangers 05 to 08

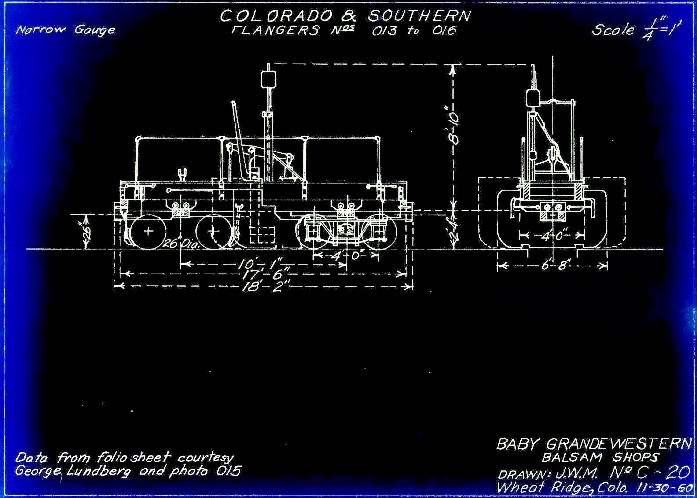

C&S Flangers 013 to 016
DSP&P Combine #1 "Auraria"
and DSP&P #6, later #700 and 701
C&S #122 (later #22) and C&S #123 (later #23)
DSP&P Baggage Cars
#40, 41, and 45, later #1000 to 1002

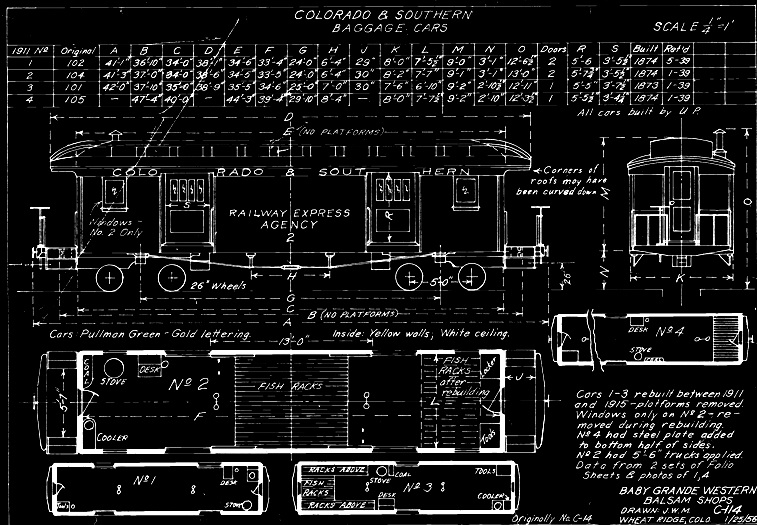

C&S Baggage Cars #101 to 104 (later #1 to 4)
DSP&P
Baggage-Mail #42 -- 44 later 1300 -- 1302
C&S Baggage Mail Express #110 -- 112 later 10 -- 12
DSP&P / DL&G
Observation Cars #??? Built UP 1883

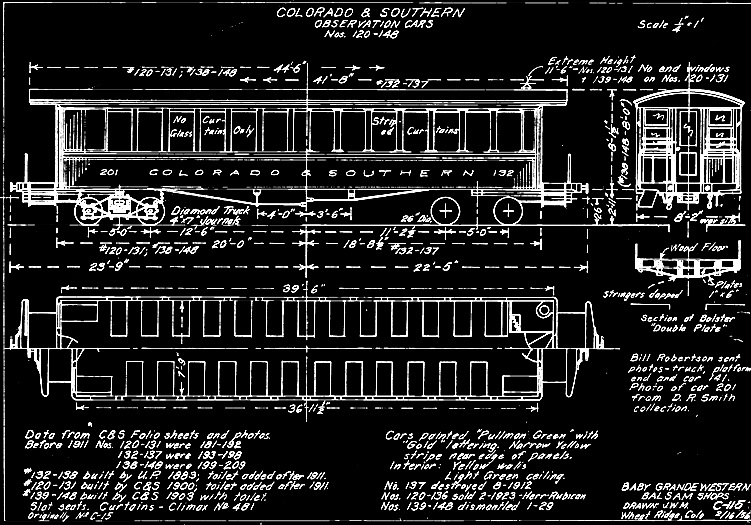

C&S Observation Cars #132 to 138

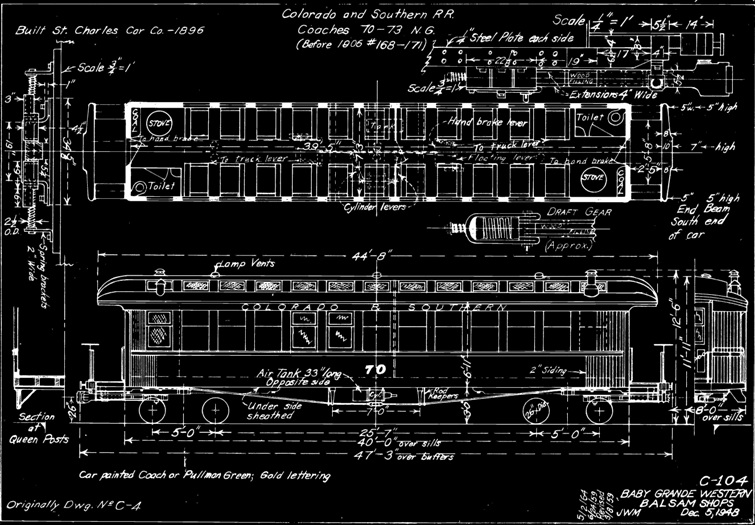

C&S Coaches #168 to 171
(later #70 to 73 Built 1896 St Charles
