DSP&P Mason Bogie
Plans by David Fletcher
David Fletcher is a well known railway modeler whose work and
drawings grace virtually every model magazine and a number of
websites. With David's permission, I have captured his
MyLargeScale 2002 Mason Bogie Master Class Project, as well as a
number of his other published works. David's prolific research,
amazing CAD skills, attention to detail, and superb modeling
abilities are unequaled, as is his generosity in sharing his
knowledge and effort so widely.
FREE
DOWNLOADS
Most of the material listed below is in PDF format. There are
more than 340 CAD draeings in the Master Class Project. These
are grouped into ZIP files for easy downloading. Most of the
drawings are full size for a 1:20.3 scale model. Illustrations
on this page are just to whet your appetite and are reduced in
size to fit the page format.
Project Background:
Intro •
Part 1 •
Part 2 •
Part 3 •
Part 4 •
Part 5 •
Part 6

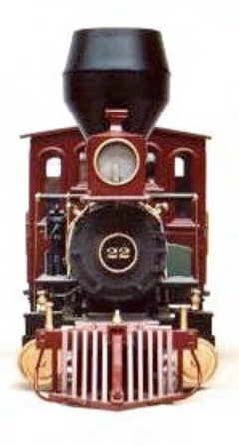

Construction Notes:
Part 1 •
Part 2 •
Part 3 •
Part 4 •
Part 5 •
Part 6a
Part 6b •
Part 6c •
Part 6d •
Part 6e •
Part 7
CAD Drawings
(Right Click >>Save Target As: All
Drawings ZIP File
Other Bogie
Goodies:
Item 1
Item 2
Item 3
See Also:
Digital
Art Gallery • Mason 2-6-6T • Mason 2-8-6T •
Large Scale 2-6-6T Mason Bogies
IT'S
ALL IN THE DETAILS
All David's CAD drawings are blackline on white background. Left
Click on image to see PDF file,
Right Click >>Save Target As
to save PDF file for full size viewing.

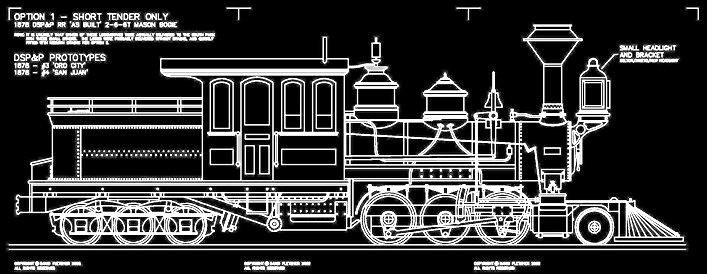

DSP&P Mason Bogie #3 and #4, "As Delivered" 1878, short tender,
wood cab, arched windows, diamond stack

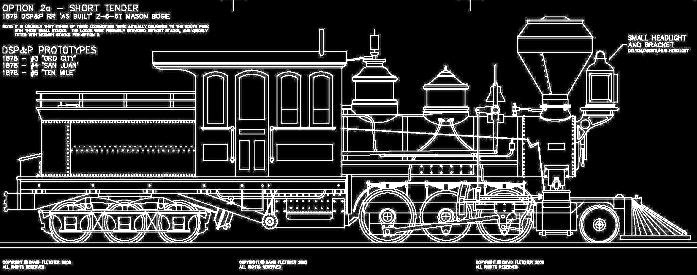

DSP&P Mason Bogie #3, #4, and #6, 1879, short tender, wood cab,
arched windows, Nesmith stack

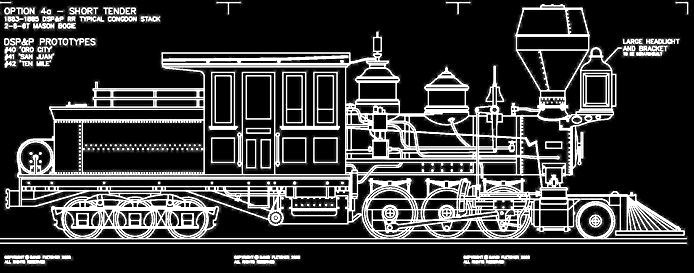

DSP&P Mason Bogie #3, #4, and #6, 1883 - 1885, short tender,
metal cab, rectangular windows, Congdon stack, air tank on rear
tender deck

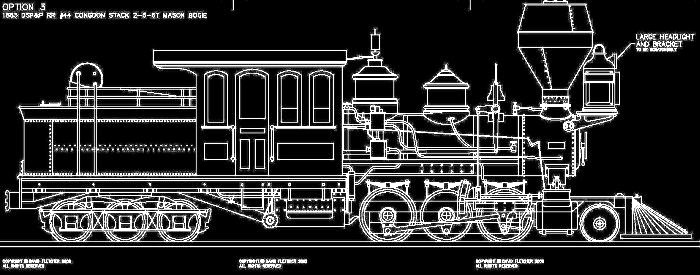

DSP&P Mason Bogie #8, 1883 - 1885, short tender, metal cab,
rectangular windows, Congdon stack, air tank on top of tender,
large headlight

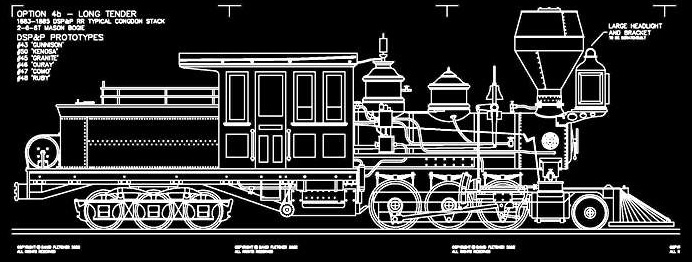

DSP&P Mason Bogie #7, #9 - #13 1883 - 1885, long tender, metal cab,
rectangular windows, Congdon stack, air tank on rear of tender
deck,
large headlight

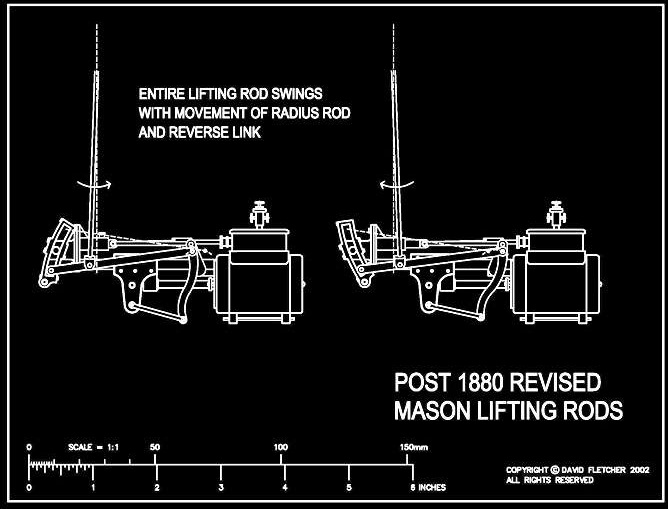

An example of one of more than 300 detail drawings on David
Fletcher's Mason Bogie Master Class
