Denver, South Park and Pacific Railroad
DSP&P Locomotive Specifications
The extracts below, from James Ehernberger's "Union
Pacific Equipment List - 1885", is one of the most
complete available. It should be accurate as it was prepared
from documents from the 1885 era.
Robert Grandt's locomotive roster also shows major dimensions of
DSP&P locomotives that survived past 1899. Bear in mind that
15 to 25 years of maintenace and upgrades have been applied to
these units, so many details may have changed across the years.

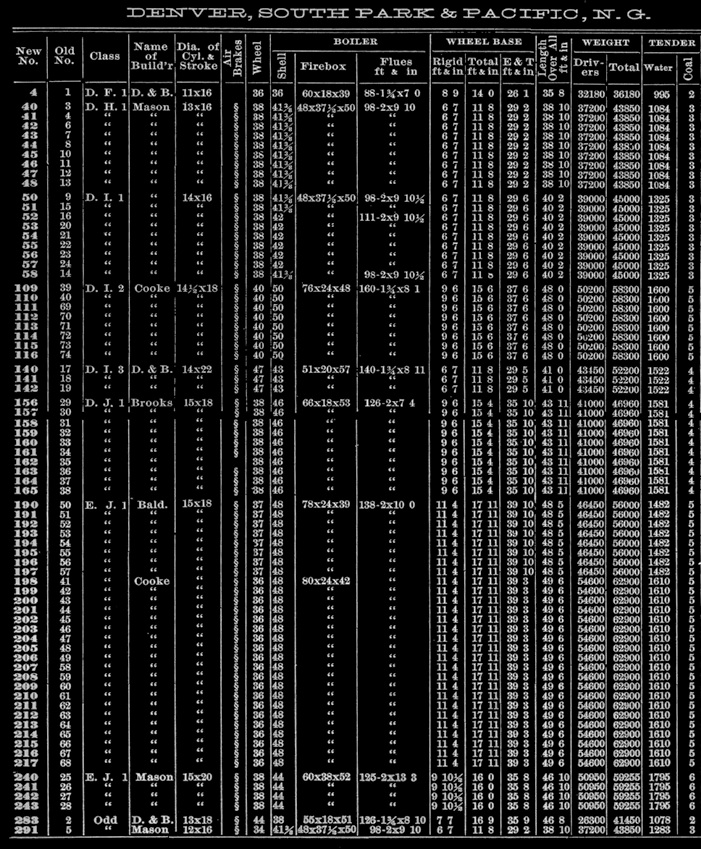

DSP&P LOCOMOTIVE SPECIFICATIONS -- 1885
Extracts from James Ehernberger's
"Union Pacific Equipment List - 1885".
Click on image for larger version

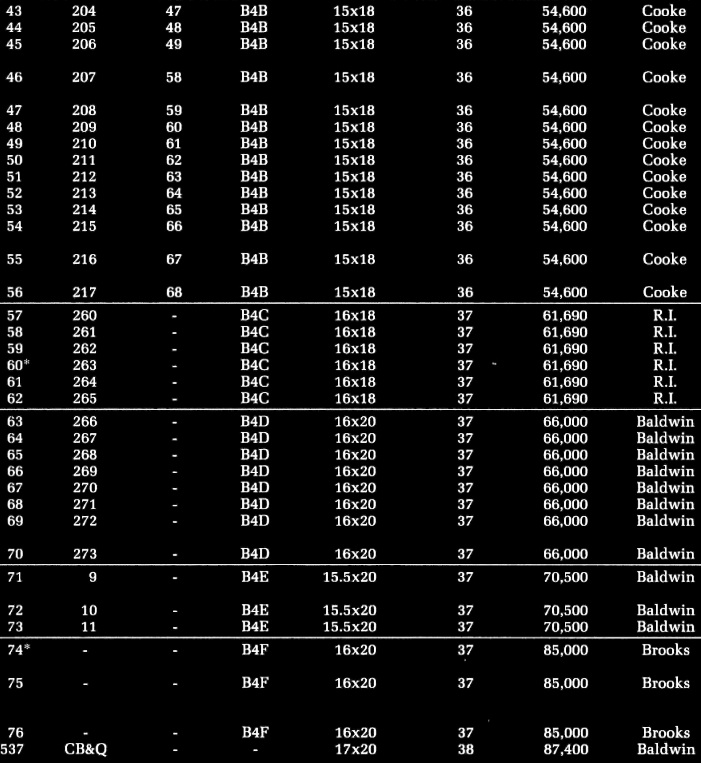

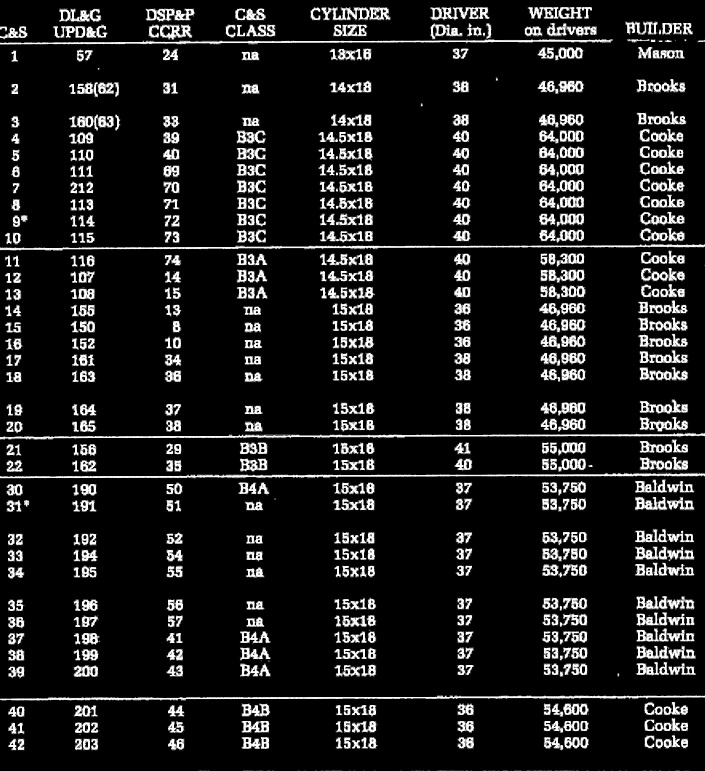

Robert Grandt's
LOCOMOTIVE SPEXIFICATIONS -- 1900
Extract from "Narrow Gauge Pictorial" Volumes VI.
DSP&P
locos scrapped before 1900 are not included.
DSP&P

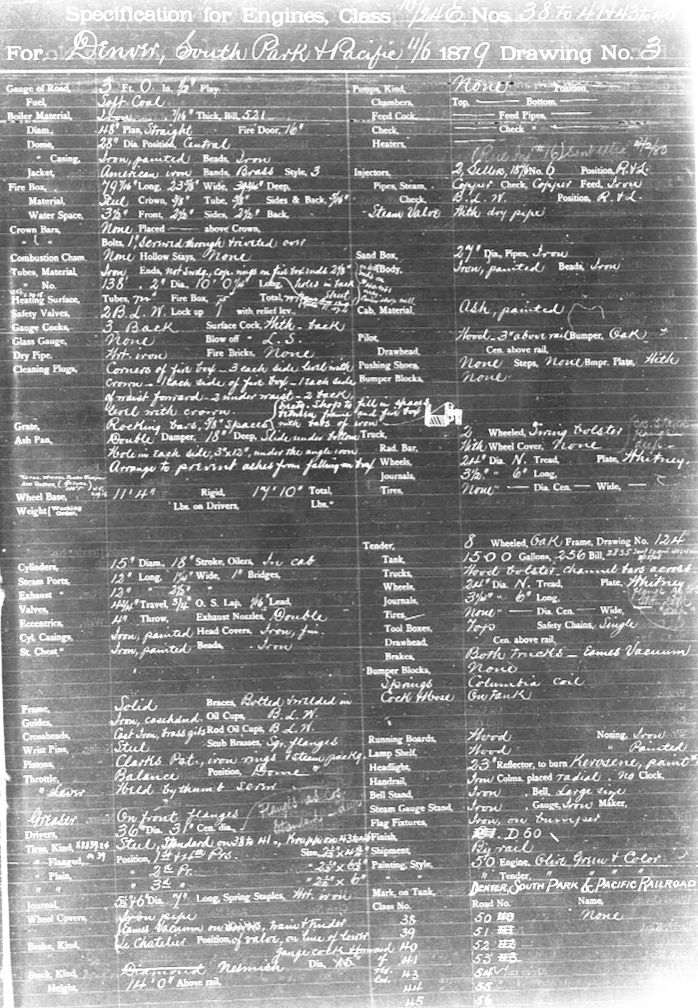

Specification Sheet for 2-8-0 Locomotives 1879
