Denver, South Park and Pacific Railroad





There are no C&S folio drawings for DSP&P freight equipment representing cars built before 1900, except for some cabooses that had been converted from DSP&P waycars. Some features on these folios did not exist on the DSP&P waycars, in particular the ladders and cupolas. The dimensions on the folios may be helpful.



The DSP&P waycars were renumbered in 1894 to the DL&G 1500 series and again in 1899 to C&S 300 series, finally ending up in C&S 1000 series in 1912. The correlation chart from Narrow Guage Pictorial Vol VII is shown below.



Photos, scale plans, history, and models of DSP&P rolling stock appear on other  pages  of this website.








DSP&P Waycar #65 (later DL&G #1503)
Then C&S 304 (later 1003)  before cupola was installed


DSP&P Waaycar #69 (later DL&G #1507) and DSP&P #76 (later DL&G #1514)
Then C&S 306 (later 1005) and C&S 310 (later 1008)



DSP&P Waycar #73 (later DL&G #1511)
Then C&S 308 (later 1006)



DSP&P Waycar #75 (later DL&G #1513)
Then C&S 309 (later 1007)

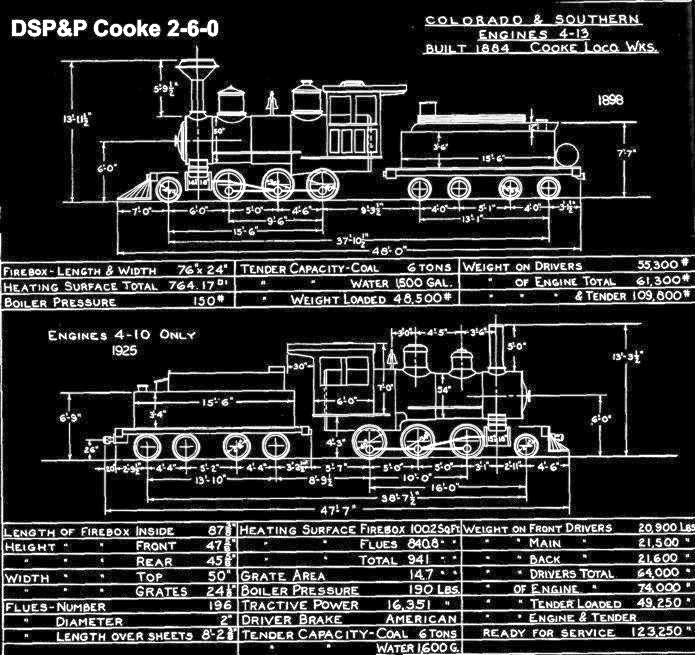

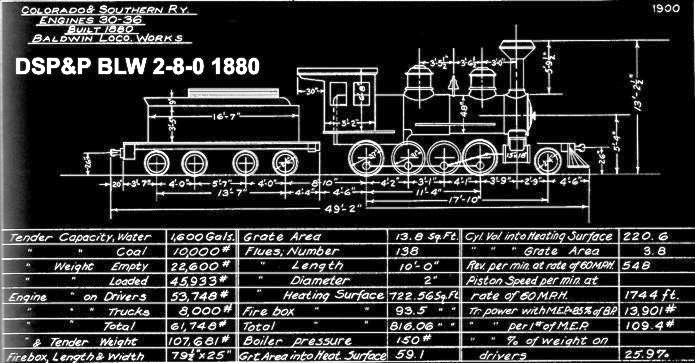

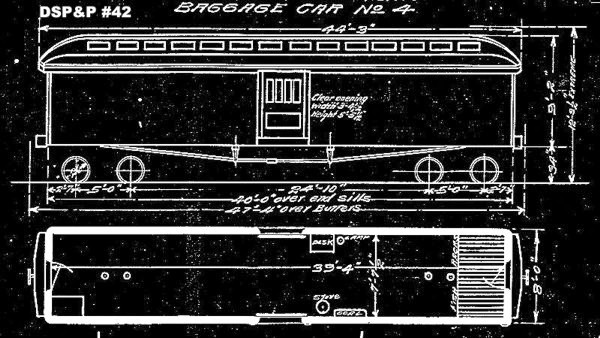

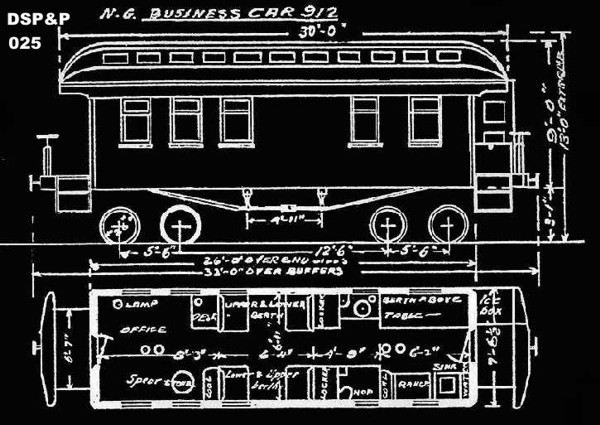

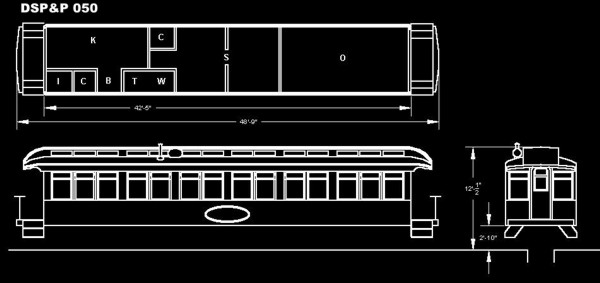

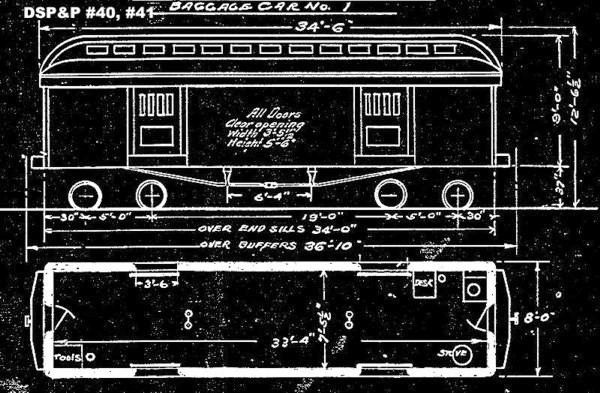

The plans on this page are from the Colorado and Southern folio drawings, as the cars and locomotives appeared around 1901 to 1906. The drawings are useful for body dimensions and general layout, but there were many modifications between the mid 1880's and 1906.

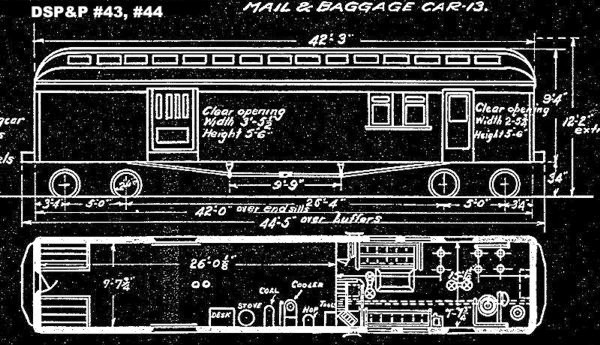

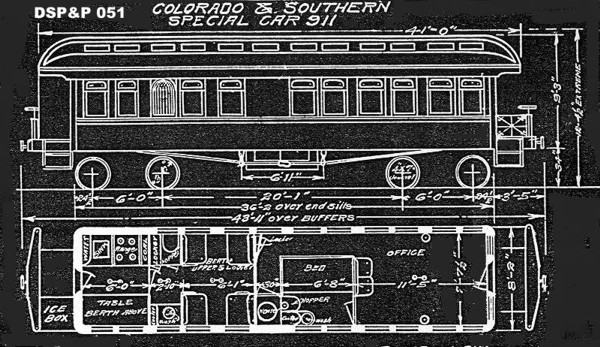

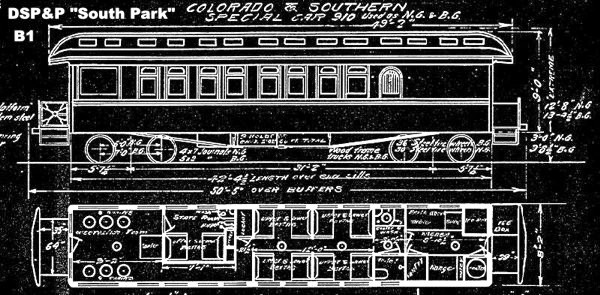

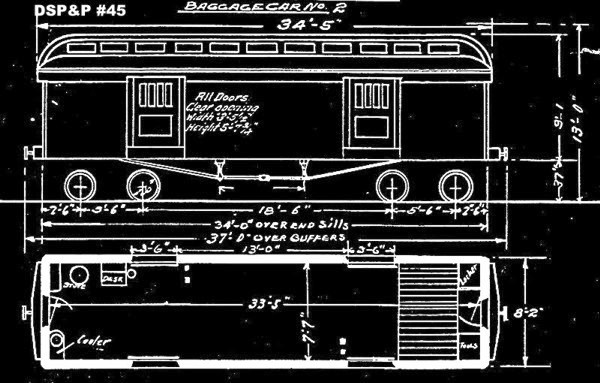

On passenger cars, the most noticable change was the removal of open platforms on the baggage cars and baggage ends of combines. Also, duck-bill roofs were replaced by more modern bullnose styles. Window treatments don't appear to have changed too much, but several cars were converted from coach to combine and vice versa.  Research the available photos to be sure of the details.These drawings are not to scale.

Photos, scale plans, history, and models of DSP&P rolling stock appear on other pages of this website.




The C&S folios cover a number of maintenance of way units built before 1900 that represent  DSP&P or DL&G MOW equipment. The dimensions and layouts may be helpful for modeling earlier versions.





DSP&P Rotary Snowplow #011 (later DL&G #064)
Then C&S #99200

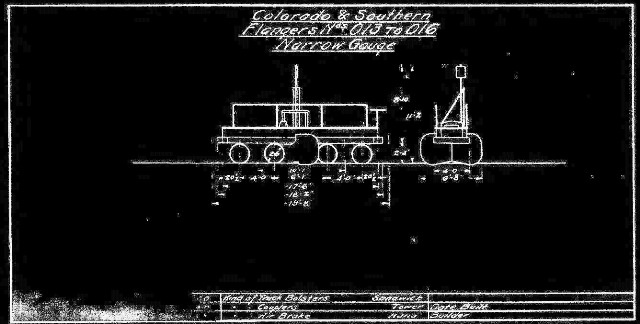

DSP&P Flangers 05, 06 (1885), later DL&G Flangers #05 to 08
Then C&S Flangers #013 to 016


DSP&P Derrick #0103 ??
Then C&S Wrecking Crane #099


DSP&P had outfit, tool, and truck cars similar but probably older than those showm below.

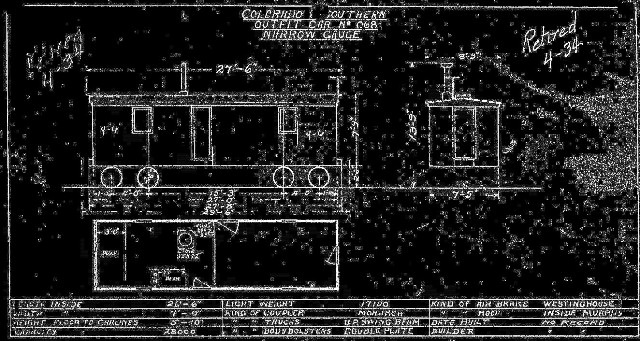

C&S 27 Foot Outfit Car 068

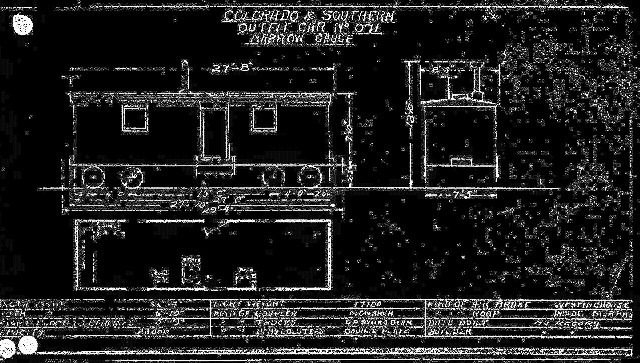

C&S 27 Foot Outfit Car 071

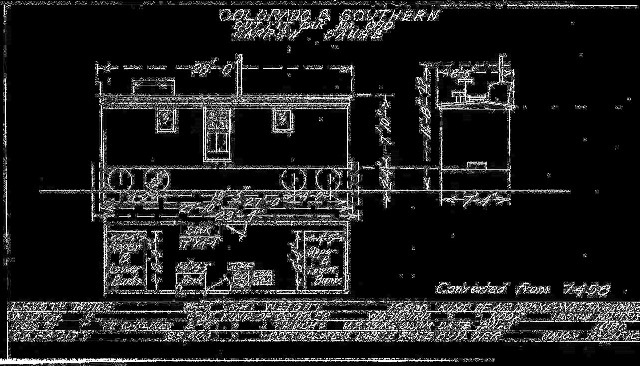

C&S 28 Foot Outfit Car 080

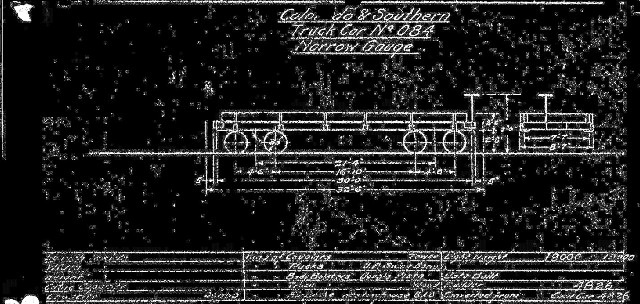

C&S 30 Foot Truck Car 084

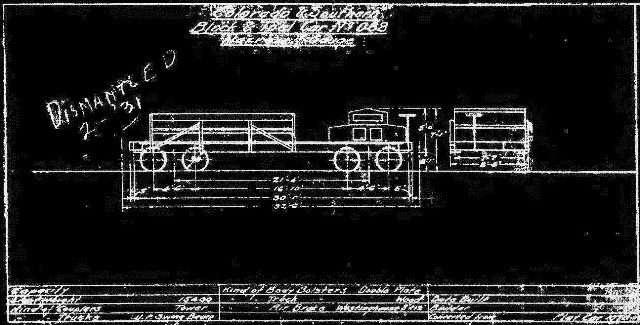

C&S 30 Foot Tool and Block Car 088 (Wrecking Crane Tender)

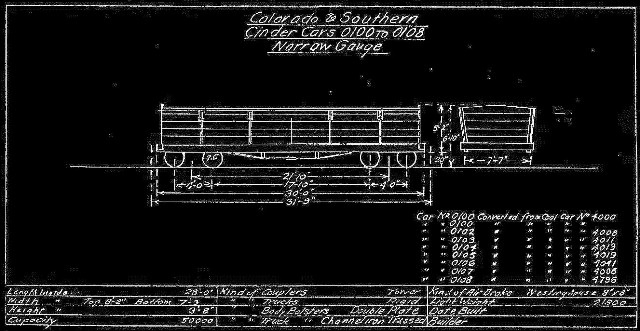

C&S 30 Foot Cinder Cars 0100 to 0108

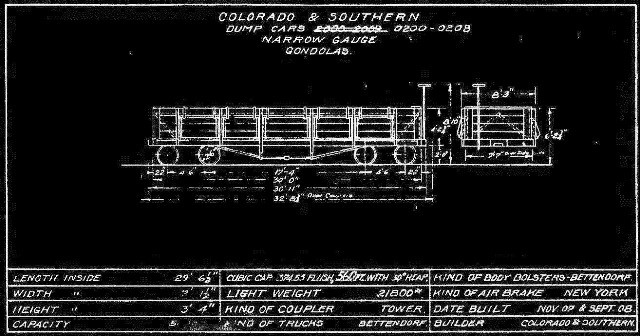

C&S 30 Foot Dump Cars 0200 to 0208

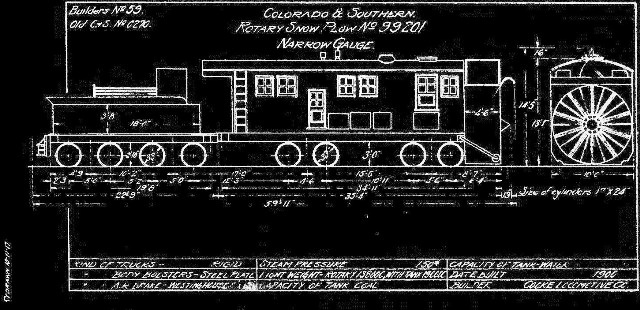

C&S Rotary Snowplow 99201

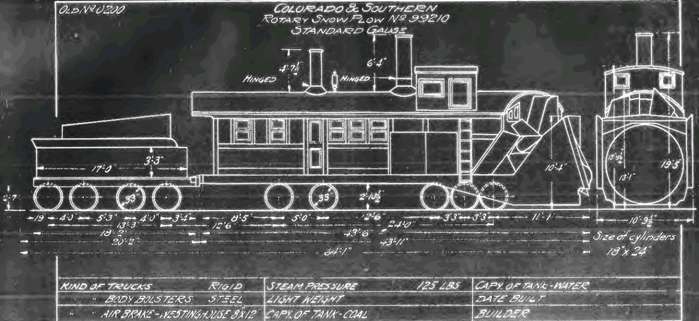

C&S Rotary Snowplow 99210 (exterior)

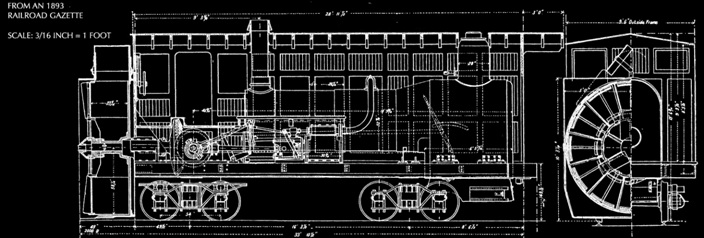

C&S Rotary Snowplow 99210 (interior)
