Denver, South Park and Pacific Railroad
DSP&P Cooke 2-6-0 Mogul
Locomotives
The Danforth &
Cooke Locomotive Works,
located in Paterson NJ,
began operations in 1852. In spite of the 20-year head start
that Rogers had, Danforth & Cooke grew very quickly. Orders for
its locomotives were on the rise through the Civil War and into
the 1880s. The Danforth & Cooke plant continued to operate even
after it was merged into the American Locomotive Company in
1901, along with Rogers and 6 others , Under the control of Alco, it mainly built rotary snow
plows or specialty engines for foreign companies. Danforth &
Cooke's Paterson plant turned out its last locomotive in 1926
-- more than 3000 steam
locomotives in all.
This page covers the 8 DSP&P 2-6-0 Mogul locomotives acquired
from Cooke. DSP&P also owned
nine 2-8-0 Consolidations from
Cooke.
|
ORIG # |
NAME |
1885 #, C&S # |
TYPE |
MFG |
BUILT |
|
39 |
== |
109, C&S 4 |
2-6-0 |
Cooke |
1884 |
|
40 |
== |
110, C&S 5 |
2-6-0 |
Cooke |
1884 |
|
69 |
== |
111, C&S 6 |
2-6-0 |
Cooke |
1884 |
|
70 |
== |
112, C&S 7 |
2-6-0 |
Cooke |
1884 |
|
71 |
== |
113, C&S 8 |
2-6-0 |
Cooke |
1884 |
|
72 |
== |
114, C&S 9 |
2-6-0 |
Cooke |
1884 |
|
73 |
== |
115, C&S 10 |
2-6-0 |
Cooke |
1884 |
|
74 |
== |
116, C&S 11 |
2-6-0 |
Cooke |
1884 |
HISTORY
In 1884, DSP&P
purchased eight 2-6-0 Moguls from Cooke Locomotive Works. They were
numbered 39, 40, and 69 through 74. These became #109 through 116 in
1885 and became C&S #4 through 11 in 1899. These locomotives
augmented the nine
Brooks 2-6-0's acquired in 1882.
DSP&P #74 was the last locomotive purchased by DSP&P. The gap in the
number series was caused two orders for 2-8-0 Consolidations from
Cooke
and Baldwin.
The Cooke Moguls had 40" drivers and 14.5x18" cylinders, so were a
little snappier on the flat than the Brooks models with 38" drivers.
C&S
#9 (ex DSP&P #72) went to the 1939 World's fair with a combine and a
coach and ended up at a tourist railway.
DSP&P #71 on the author's RMH,L&N Ry.
The LGB model of C&S #5, (ex DSP&P #72) on the author's large scale
garden railway.
PHOTO GALLERY
See also
CAD Drawings

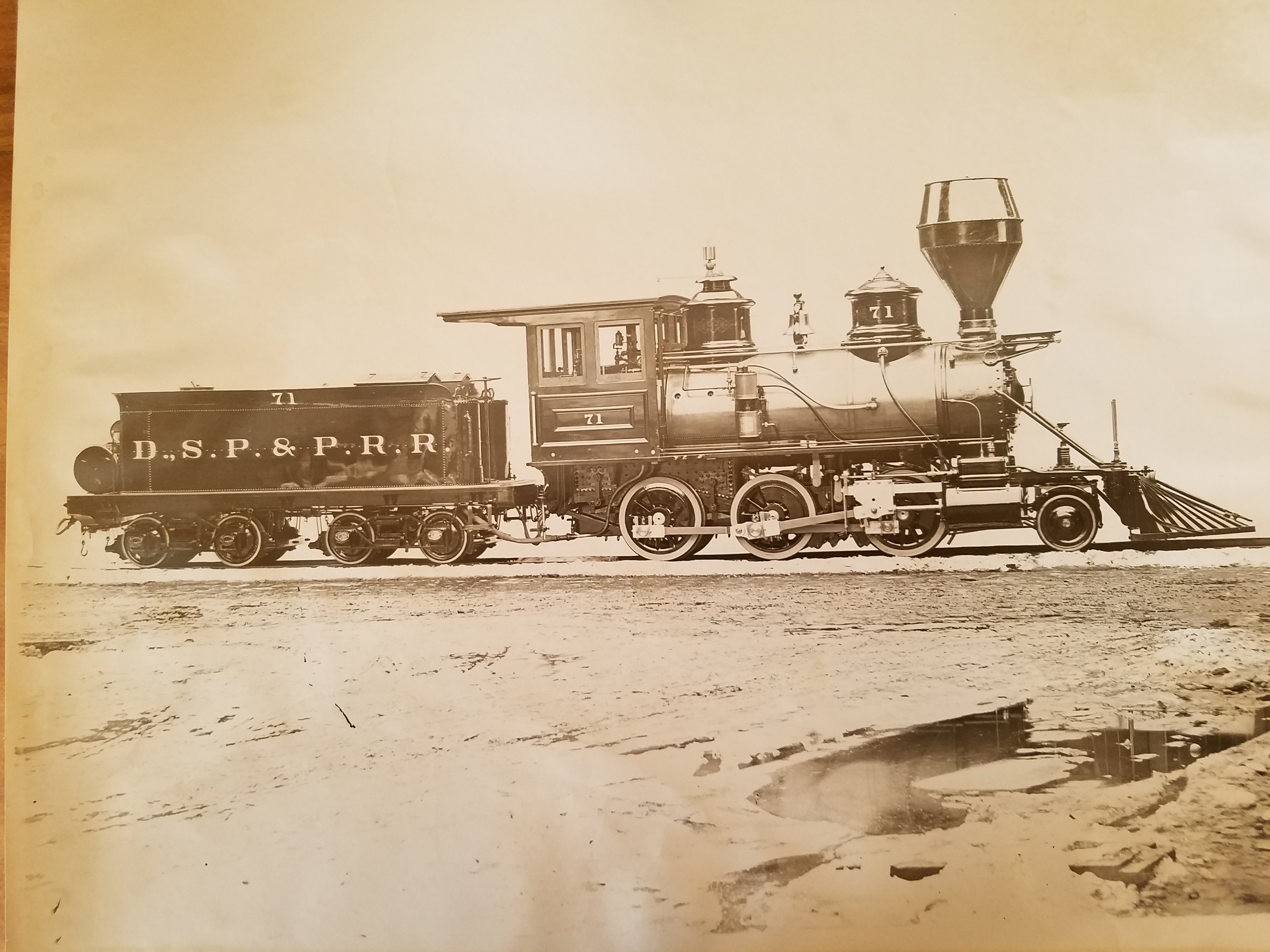

Builder's Photo DSP&P Cooke Mogul #71. Click inage to download
hi-res version.
Photo of DSP&P Cooke Mogul #69 - note
fancy scroll work on the domes
DSP&P #70
DSP&P #70

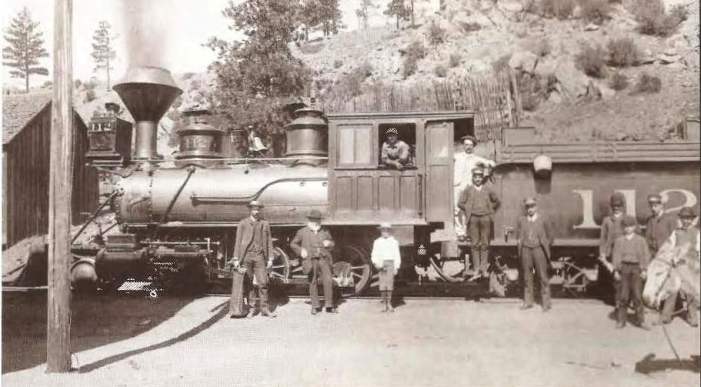

DSP&P #70 after renumbering to DSP&P #112, with Congdon
stack

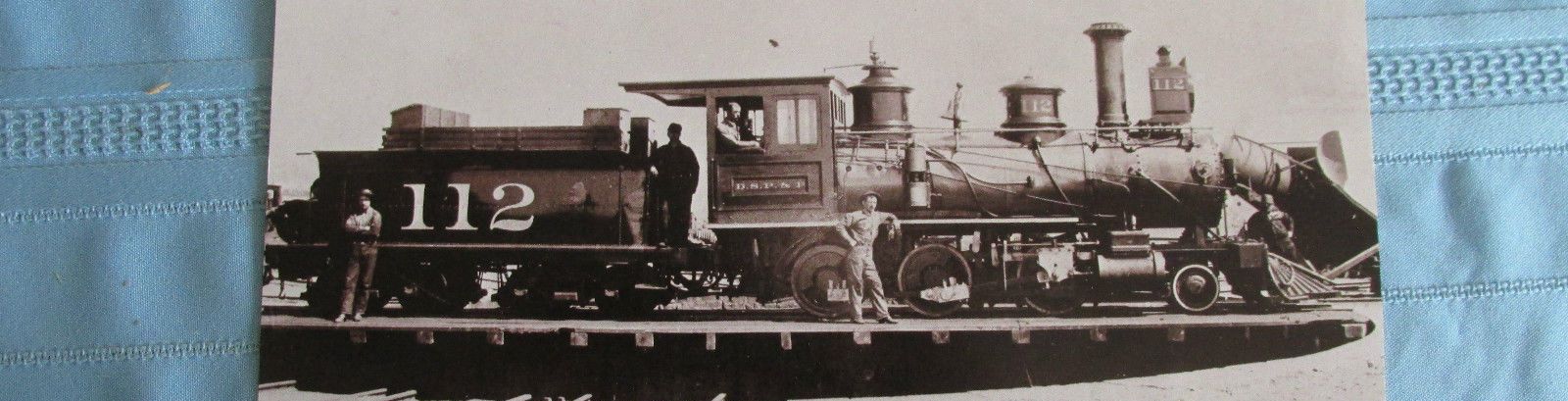

DSP&P #70 after renumbering to DSP&P #112, with straight
stack, on Comp turntable. Note DSP&P on cab side.

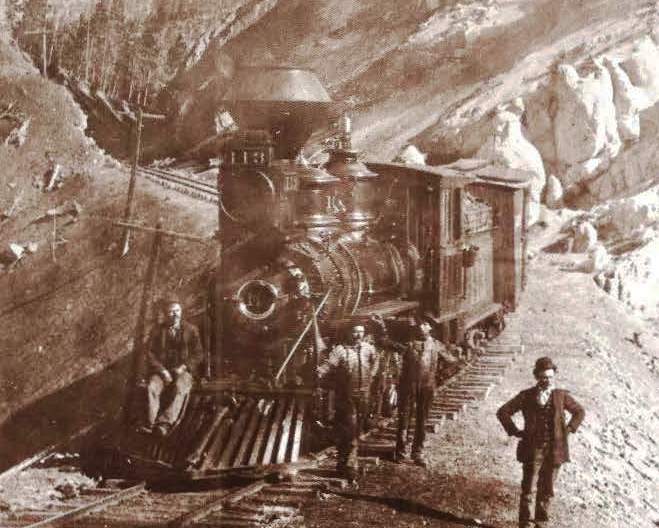

DSP&P #71 after renumbering to DSP&P #113
FOLIOS
and PLANS
See also
CAD Drawings

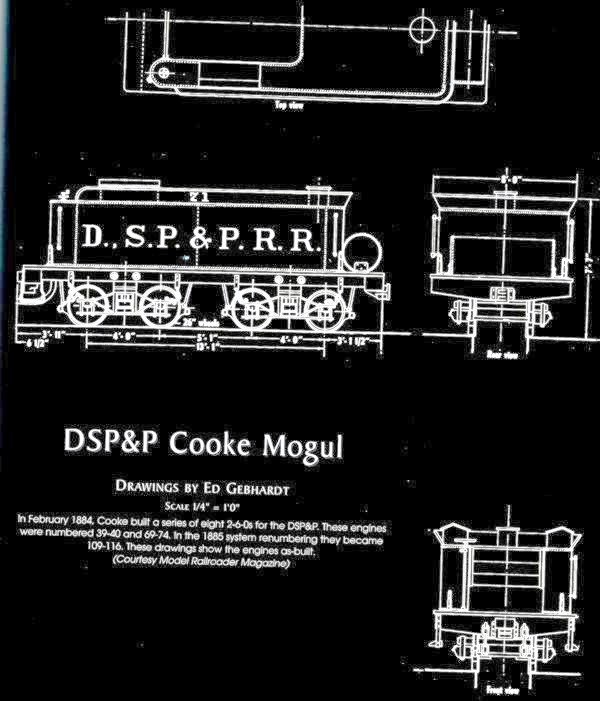

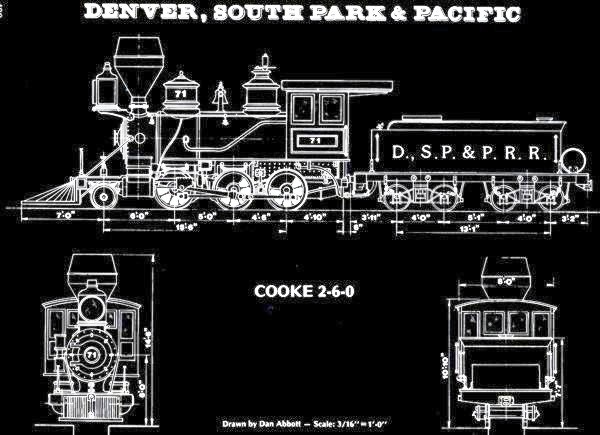

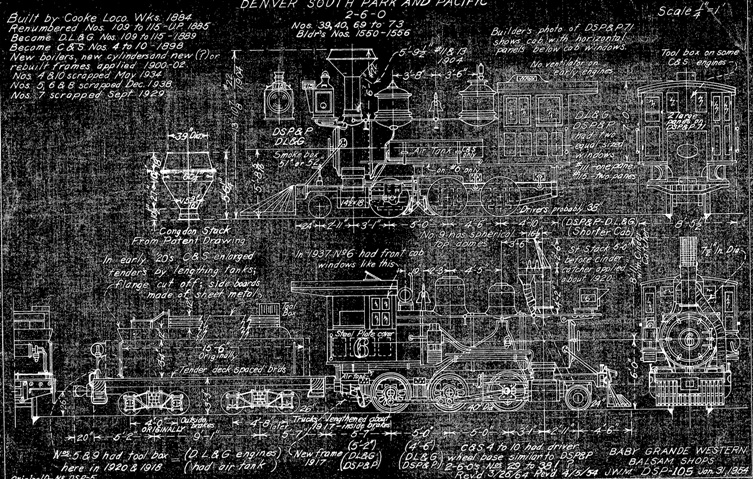

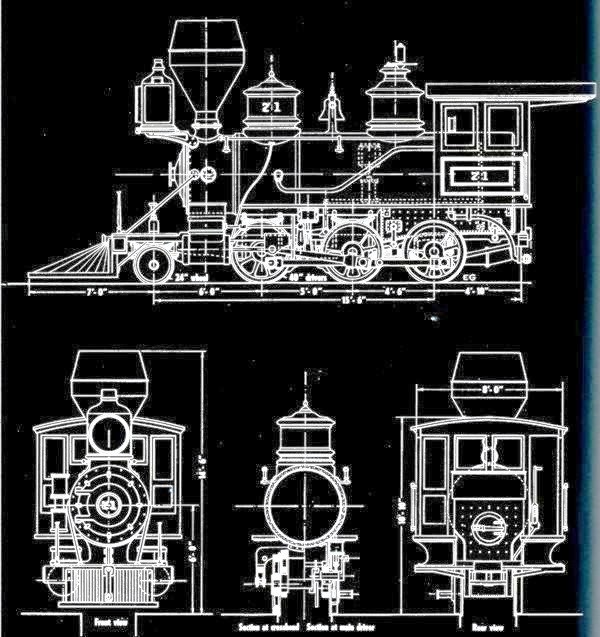

CAD drawings of DSP&P 2-6-0 Cooke Mogul #71 from "Model Railroader"
Dec 1998.
DSP&P 2-6-0 Cooke Mogul
#71
DSP&P
2-6-0 Cooke Mogul #71 Page 1
DSP&P
2-6-0 Cooke Mogul #71 Page 2
DSP&P
2-6-0 Cooke Mogul #71 Page 3
